Photo of ION terastatION4. Click for full-size image.
Inside Photo of ION terastatION4. Click for full-size image.

ION terastatION4 Server

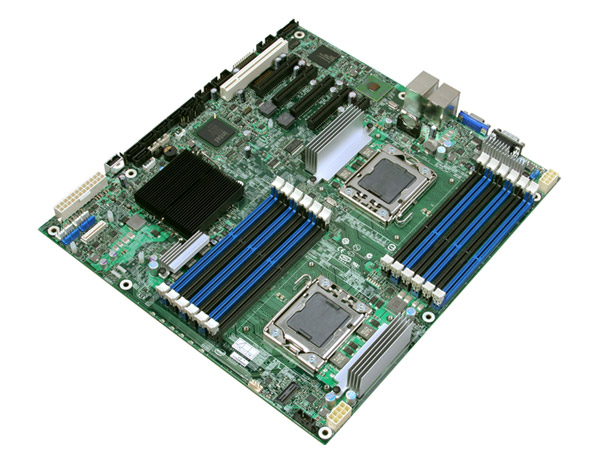

The ION terastatION4 is a 2U / 3U / 5U / 8U Rackmount Server based on the Intel S5520HC in the Ci Design NSR chassis. The terastatION4 supports 2 Intel® 6-Core Xeon® 5600 Series processors at speeds as high as 2.93GHz and up to 96GB of ECC DDR3 1333 memory.

  • 2U / 3U / 5U / 8U Rackmount Server
  • Up to 2 Intel® 6-Core Xeon® 5600 Series processors
  • Up to 96GB of ECC DDR3 1333 memory
  • (4) x8 (1) x4 PCI Express slots
  • (1) Slot PCI
  • MGA200 integrated graphics
  • Dual Intel Gigabit Server NICs with IOAT2
  • (6) SATA ports on board


Available on www.sewp.nasa.gov
In 1998, ION became the first company in the world to qualify as an Intel Authorized Solution Provider, the program now known as Intel Channel Partner Premier. 6-Core Xeon® 5600 Series processor
